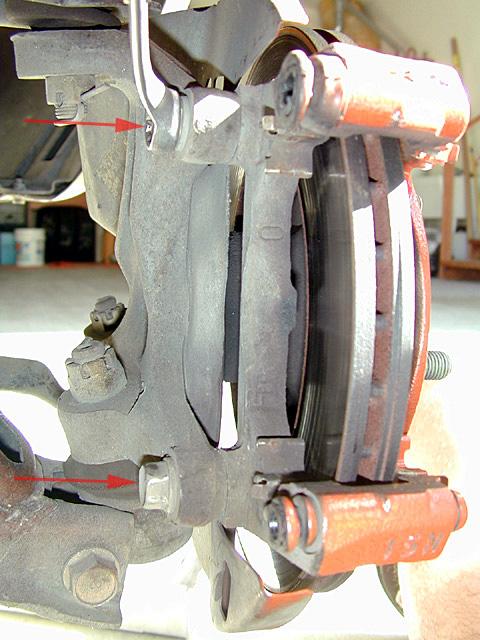

The bolts holding the brackets have to come off.  Remove the bracket and put the '94 bracket on.  BUT use the bracket from the opposite side of the car.  This is the passenger side, so it would use the '94 driver's side bracket.  That way the pivot bolt for the caliper stays at the TOP.
