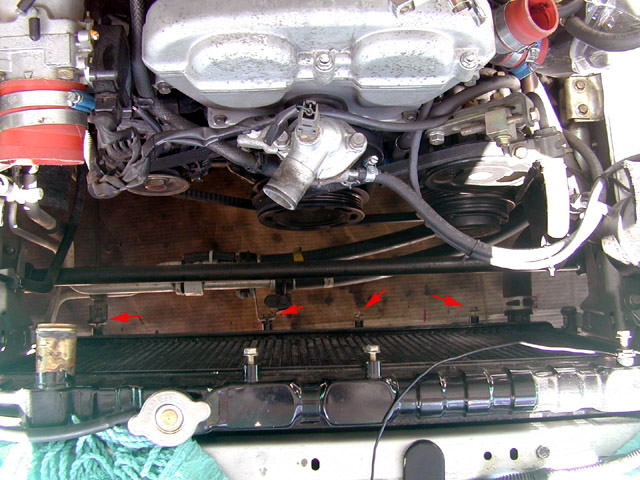

Loosen these lower bolts to lift out the fans. If you are going to pull the radiator (and you ARE if you are pulling the engine), you'll need to undo the secondary bolts that hold the air conditioning tubing to the radiator (the arrows on the left).
